Free-Standing Air Terminal Supports

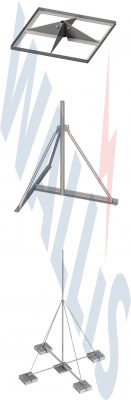

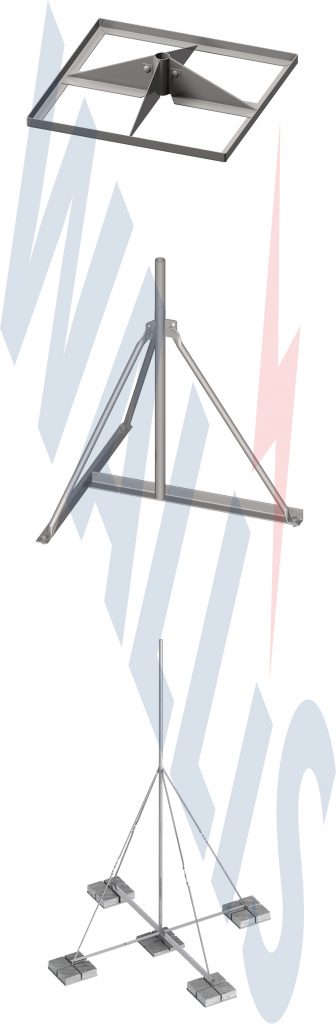

An image of the Wallis free-standing air terminal supports range

A range of supports to suit the free-standing air terminals (ATF).

TypeTerminal Height (M)Terminal Barrel Ø (mm)Required Mounting Space (mm)Number of Concrete SupportsUnit Weight (kg)Pack QuantityPart Number
TypeSquare Plate SupportTerminal Height (M)up to 4.0MTerminal Barrel Ø (mm)42Required Mounting Space (mm)650 x 650Number of Concrete Supports4 or 8Unit Weight (kg)7.00Pack Quantity1Part NumberATS 001
TypeTripod SupportsTerminal Height (M)4.5M - 5.5MTerminal Barrel Ø (mm)42Required Mounting Space (mm)1350 x 1350Number of Concrete Supports3Unit Weight (kg)8.00Pack Quantity1Part NumberATT 001
TypeTripod SupportsTerminal Height (M)6.0M - 8.0MTerminal Barrel Ø (mm)60Required Mounting Space (mm)1850 x 1850Number of Concrete Supports6Unit Weight (kg)25.00Pack Quantity1Part NumberATT 002
TypeTripod SupportsTerminal Height (M)9.0 - 10.0MTerminal Barrel Ø (mm)60Required Mounting Space (mm)1850 x 1850Number of Concrete Supports10Unit Weight (kg)40.00Pack Quantity1Part NumberATT 003
TypeQuad SupportTerminal Height (M)11.0M - 12.0MTerminal Barrel Ø (mm)60Required Mounting Space (mm)3400 x 3400Number of Concrete Supports36Unit Weight (kg)697.00Pack Quantity1Part NumberATQ 001

Material: Stainless Steel.
