Free-Standing Air Terminals – Quad Bases

An image of the Wallis Fourpod Base Air Terminals

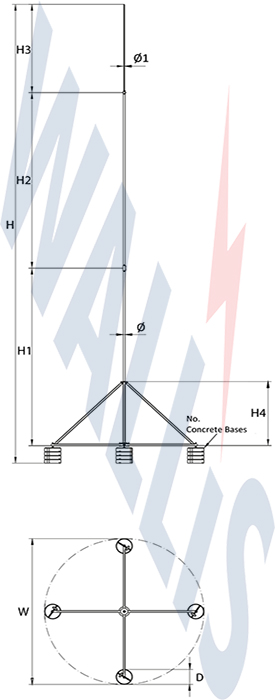

A dimensional drawing of the Wallis four free-standing air terminal.

The A.N. Wallis free-standing air terminals are constructed from aluminium, ensuring ease of handling, each single base unit comes supplied with:

  • 2 x 40mm Diameter Air Terminals
  • 1 x 16mm Diameter Air Terminal
  • 1 x 40mm to 40mm Air Terminal Connector
  • 1 x 40mm to 16mm Air Terminal Connector
  • 1 x Stainless Steel or Hot Dip Galvanised Quad Base
  • 1 x Mounting Bracket
  • 4 x Steel Threaded Mounting Pins
  • 8, 12, 16 or 20 x Round Concrete Bases.

The supplied mounting bracket securely connects the air terminal to the roof conductor and is suitable for copper or aluminium conductors in 8mm or 25 x 3mm sizes.

Designed for efficient reliable installation, A.N. Wallis Free-Standing Air Terminals offer superior quality and protection.

Terminal Height (M)Wind Resistance (km/h)H (mm)H1 (mm)H2 (mm)H3 (mm)Ø (mm)Ø1 (mm)W (mm)D (mm)H4 (mm)No. Concrete BasesPart Number
Terminal Height (M)8.0Wind Resistance (km/h)130H (mm)8266H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases8 x 16kgsPart NumberFST080-1GV
Terminal Height (M)8.0Wind Resistance (km/h)130H (mm)8266H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases8 x 16kgsPart NumberFST080-1SS.
Terminal Height (M)8.0Wind Resistance (km/h)150H (mm)8354H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases12 x 16kgsPart NumberFST080-2GV
Terminal Height (M)8.0Wind Resistance (km/h)150H (mm)8354H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases12 x 16kgsPart NumberFST080-2SS.
Terminal Height (M)8.0Wind Resistance (km/h)169H (mm)8442H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases16 x 16kgsPart NumberFST080-3GV
Terminal Height (M)8.0Wind Resistance (km/h)169H (mm)8442H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases16 x 16kgsPart NumberFST080-3SS.
Terminal Height (M)8.0Wind Resistance (km/h)185H (mm)8530H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases20 x 16kgsPart NumberFST080-4GV
Terminal Height (M)8.0Wind Resistance (km/h)185H (mm)8530H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases20 x 16kgsPart NumberFST080-4SS
Terminal Height (M)9.0Wind Resistance (km/h)115H (mm)9266H1 (mm)4000H2 (mm)4000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases8 x 16kgsPart NumberFST090-1GV
Terminal Height (M)9.0Wind Resistance (km/h)115H (mm)9266H1 (mm)4000H2 (mm)4000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases8 x 16kgsPart NumberFST090-1SS
Terminal Height (M)9.0Wind Resistance (km/h)133H (mm)9354H1 (mm)4000H2 (mm)4000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases12 x 16kgsPart NumberFST090-2GV
Terminal Height (M)9.0Wind Resistance (km/h)133H (mm)9354H1 (mm)4000H2 (mm)4000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases12 x 16kgsPart NumberFST090-2SS
Terminal Height (M)9.0Wind Resistance (km/h)148H (mm)9442H1 (mm)4000H2 (mm)4000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases16 x 16kgsPart NumberFST090-3GV
Terminal Height (M)9.0Wind Resistance (km/h)148H (mm)9442H1 (mm)4000H2 (mm)4000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases16 x 16kgsPart NumberFST090-3SS
Terminal Height (M)10.0Wind Resistance (km/h)103H (mm)10266H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases8 x 16kgsPart NumberFST100-1GV
Terminal Height (M)10.0Wind Resistance (km/h)103H (mm)10266H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases8 x 16kgsPart NumberFST100-1SS
Terminal Height (M)10.0Wind Resistance (km/h)120H (mm)10354H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases12 x 16kgsPart NumberFST100-2GV
Terminal Height (M)10.0Wind Resistance (km/h)120H (mm)10354H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases12 x 16kgsPart NumberFST100-2SS
Terminal Height (M)10.0Wind Resistance (km/h)134H (mm)10442H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases16 x 16kgsPart NumberFST100-3GV
Terminal Height (M)10.0Wind Resistance (km/h)134H (mm)10442H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases16 x 16kgsPart NumberFST100-3SS
Terminal Height (M)10.0Wind Resistance (km/h)145H (mm)10530H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases20 x 16kgsPart NumberFST100-4GV
Terminal Height (M)10.0Wind Resistance (km/h)145H (mm)10530H1 (mm)4000H2 (mm)4000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø3320D (mm)Ø340H4 (mm)1460No. Concrete Bases20 x 16kgsPart NumberFST100-4SS

Material: Aluminium Masts

Part Number Ending GV – Hot Dip Galvanised Base

Part Number Ending SS – Stainless Steel Base
