Free-Standing Air Terminals – Single Base

An image of the Wallis single concrete base air terminals

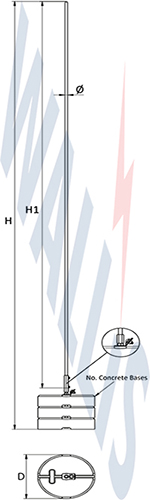

A dimensional drawing of the Wallis Single Base Free-Standing Air Terminals

The A.N. Wallis free-standing air terminals are constructed from aluminium, ensuring ease of handling, each single base unit comes supplied with:

  • 1 x 16mm Diameter Air Terminal
  • 1 x Steel Threaded Mounting Pin
  • 1 x Mounting Bracket
  • 2, 3 or 4 x Round Concrete Bases.

The supplied mounting bracket securely connects the air terminal to the roof conductor and is suitable for copper or aluminium conductors in 8mm or 25 x 3mm sizes.

Designed for efficient reliable installation, A.N. Wallis Free-Standing Air Terminals offer superior quality and protection.

Terminal Height (M)Wind Resistance (km/h)H (mm)H1 (mm)Ø (mm)D (mm)No. Concrete BasesPart Number
Terminal Height (M)3.0Wind Resistance (km/h)118H (mm)3170H1 (mm)3000Ø (mm)Ø16D (mm)340No. Concrete Bases2 x 16kgsPart NumberFST030-1
Terminal Height (M)3.0Wind Resistance (km/h)142H (mm)3255H1 (mm)3000Ø (mm)Ø16D (mm)340No. Concrete Bases3 x 16kgsPart NumberFST030-2
Terminal Height (M)3.0Wind Resistance (km/h)155H (mm)3340H1 (mm)3000Ø (mm)Ø16D (mm)340No. Concrete Bases4 x 16kgsPart NumberFST030-3
Terminal Height (M)3.5Wind Resistance (km/h)107H (mm)3755H1 (mm)3500Ø (mm)Ø16D (mm)340No. Concrete Bases3 x 16kgsPart NumberFST035-1
Terminal Height (M)3.5Wind Resistance (km/h)116H (mm)3840H1 (mm)3500Ø (mm)Ø16D (mm)340No. Concrete Bases4 x 16kgsPart NumberFST035-2
Terminal Height (M)4.0Wind Resistance (km/h)107H (mm)4255H1 (mm)4000Ø (mm)Ø16D (mm)340No. Concrete Bases3 x 16kgsPart NumberFST040-1
Terminal Height (M)4.0Wind Resistance (km/h)116H (mm)4340H1 (mm)4000Ø (mm)Ø16D (mm)340No. Concrete Bases4 x 16kgsPart NumberFST040-2

Material: Aluminium
