Free-Standing Air Terminals – Tripod Base

An image of the Wallis Tripod Base Air Terminals

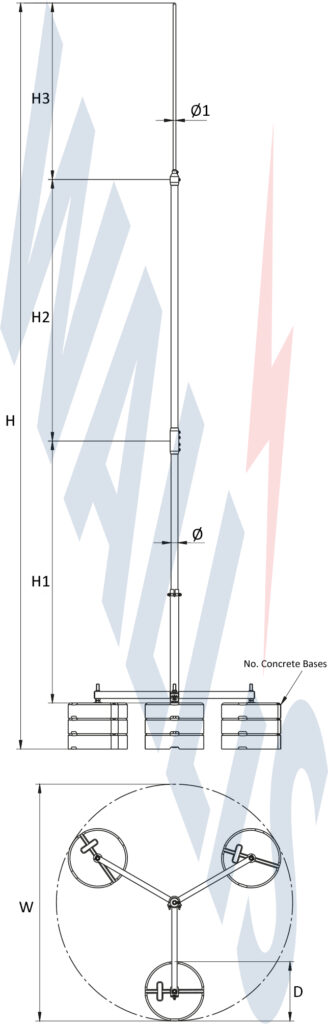

A dimensional drawing of the Wallis Tripod Base Free-Standing Air Terminal

The A.N. Wallis free-standing air terminals are constructed from aluminium, ensuring ease of handling, each single base unit comes supplied with:

  • 2 x 40mm Diameter Air Terminals
  • 1 x 16mm Diameter Air Terminal
  • 1 x 40mm to 40mm Air Terminal Connector
  • 1 x 40mm to 16mm Air Terminal Connector
  • 1 x Stainless Steel Tripod Base
  • 1 x Mounting Bracket
  • 3 x Steel Threaded Mounting Pins
  • 3, 6, 9, 12 or 15 x Round Concrete Bases.

The supplied mounting bracket securely connects the air terminal to the roof conductor and is suitable for copper or aluminium conductors in 8mm or 25 x 3mm sizes.

Designed for efficient reliable installation, A.N. Wallis Free-Standing Air Terminals offer superior quality and protection.

Terminal Height (M)Wind Resistance (km/h)H (mm)H1 (mm)H2 (mm)H3 (mm)Ø (mm)Ø1 (mm)W (mm)D (mm)No. Concrete BasesPart Number
Terminal Height (M)3.0Wind Resistance (km/h)155H (mm)3085H1 (mm)2000H2 (mm)N/AH3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases3 x 16kgsPart NumberFST030-3SS
Terminal Height (M)3.0Wind Resistance (km/h)213H (mm)3170H1 (mm)2000H2 (mm)N/AH3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST030-4SS
Terminal Height (M)3.0Wind Resistance (km/h)258H (mm)3255H1 (mm)2000H2 (mm)N/AH3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST030-5SS
Terminal Height (M)3.5Wind Resistance (km/h)116H (mm)3585H1 (mm)3000H2 (mm)N/AH3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases3 x 16kgsPart NumberFST035-3SS
Terminal Height (M)3.5Wind Resistance (km/h)159H (mm)3670H1 (mm)3000H2 (mm)N/AH3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST035-4SS
Terminal Height (M)3.5Wind Resistance (km/h)192H (mm)3755H1 (mm)3000H2 (mm)N/AH3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST035-5SS
Terminal Height (M)4.0Wind Resistance (km/h)116H (mm)4085H1 (mm)3000H2 (mm)N/AH3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases3 x 16kgsPart NumberFST040-3SS
Terminal Height (M)4.0Wind Resistance (km/h)159H (mm)4170H1 (mm)3000H2 (mm)N/AH3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST040-4SS
Terminal Height (M)4.0Wind Resistance (km/h)192H (mm)4255H1 (mm)3000H2 (mm)N/AH3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST040-5SS
Terminal Height (M)4.5Wind Resistance (km/h)93H (mm)4585H1 (mm)2000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases3 x 16kgsPart NumberFST045-1SS
Terminal Height (M)4.5Wind Resistance (km/h)127H (mm)4670H1 (mm)2000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST045-2SS
Terminal Height (M)4.5Wind Resistance (km/h)153H (mm)4755H1 (mm)2000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST045-3SS
Terminal Height (M)4.5Wind Resistance (km/h)175H (mm)4840H1 (mm)2000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST045-4SS
Terminal Height (M)5.0Wind Resistance (km/h)93H (mm)5085H1 (mm)2000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases3 x 16kgsPart NumberFST050-1SS
Terminal Height (M)5.0Wind Resistance (km/h)127H (mm)5170H1 (mm)2000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST050-2SS
Terminal Height (M)5.0Wind Resistance (km/h)153H (mm)5255H1 (mm)2000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST050-3SS
Terminal Height (M)5.0Wind Resistance (km/h)175H (mm)5340H1 (mm)2000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST050-4SS
Terminal Height (M)5.5Wind Resistance (km/h)106H (mm)5670H1 (mm)3000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST055-1SS
Terminal Height (M)5.5Wind Resistance (km/h)127H (mm)5755H1 (mm)3000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST055-2SS
Terminal Height (M)5.5Wind Resistance (km/h)146H (mm)5840H1 (mm)3000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST055-3SS
Terminal Height (M)5.5Wind Resistance (km/h)149H (mm)5925H1 (mm)3000H2 (mm)2000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases15 x 16kgsPart NumberFST055-4SS
Terminal Height (M)6.0Wind Resistance (km/h)106H (mm)6170H1 (mm)3000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST060-1SS
Terminal Height (M)6.0Wind Resistance (km/h)127H (mm)6255H1 (mm)3000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST060-2SS
Terminal Height (M)6.0Wind Resistance (km/h)146H (mm)6340H1 (mm)3000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST060-3SS
Terminal Height (M)6.0Wind Resistance (km/h)149H (mm)6425H1 (mm)3000H2 (mm)2000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases15 x 16kgsPart NumberFST060-4SS
Terminal Height (M)6.5Wind Resistance (km/h)97H (mm)6670H1 (mm)3000H2 (mm)3000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST065-1SS
Terminal Height (M)6.5Wind Resistance (km/h)117H (mm)6755H1 (mm)3000H2 (mm)3000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST065-2SS
Terminal Height (M)6.5Wind Resistance (km/h)133H (mm)6840H1 (mm)3000H2 (mm)3000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST065-3SS
Terminal Height (M)6.5Wind Resistance (km/h)140H (mm)6925H1 (mm)3000H2 (mm)3000H3 (mm)500Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases15 x 16kgsPart NumberFST065-4SS
Terminal Height (M)7.0Wind Resistance (km/h)97H (mm)7170H1 (mm)3000H2 (mm)3000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases6 x 16kgsPart NumberFST070-1SS
Terminal Height (M)7.0Wind Resistance (km/h)117H (mm)7255H1 (mm)3000H2 (mm)3000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST070-2SS
Terminal Height (M)7.0Wind Resistance (km/h)133H (mm)7340H1 (mm)3000H2 (mm)3000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST070-3SS
Terminal Height (M)7.0Wind Resistance (km/h)140H (mm)7425H1 (mm)3000H2 (mm)3000H3 (mm)1000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases15 x 16kgsPart NumberFST070-4SS
Terminal Height (M)8.0Wind Resistance (km/h)101H (mm)8255H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases9 x 16kgsPart NumberFST080-1SS
Terminal Height (M)8.0Wind Resistance (km/h)116H (mm)8340H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases12 x 16kgsPart NumberFST080-2SS
Terminal Height (M)8.0Wind Resistance (km/h)122H (mm)8425H1 (mm)3000H2 (mm)3000H3 (mm)2000Ø (mm)Ø40Ø1 (mm)Ø16W (mm)Ø1350D (mm)Ø340No. Concrete Bases15 x 16kgsPart NumberFST080-3SS

Material: Aluminium Mast & Stainless Steel Base
