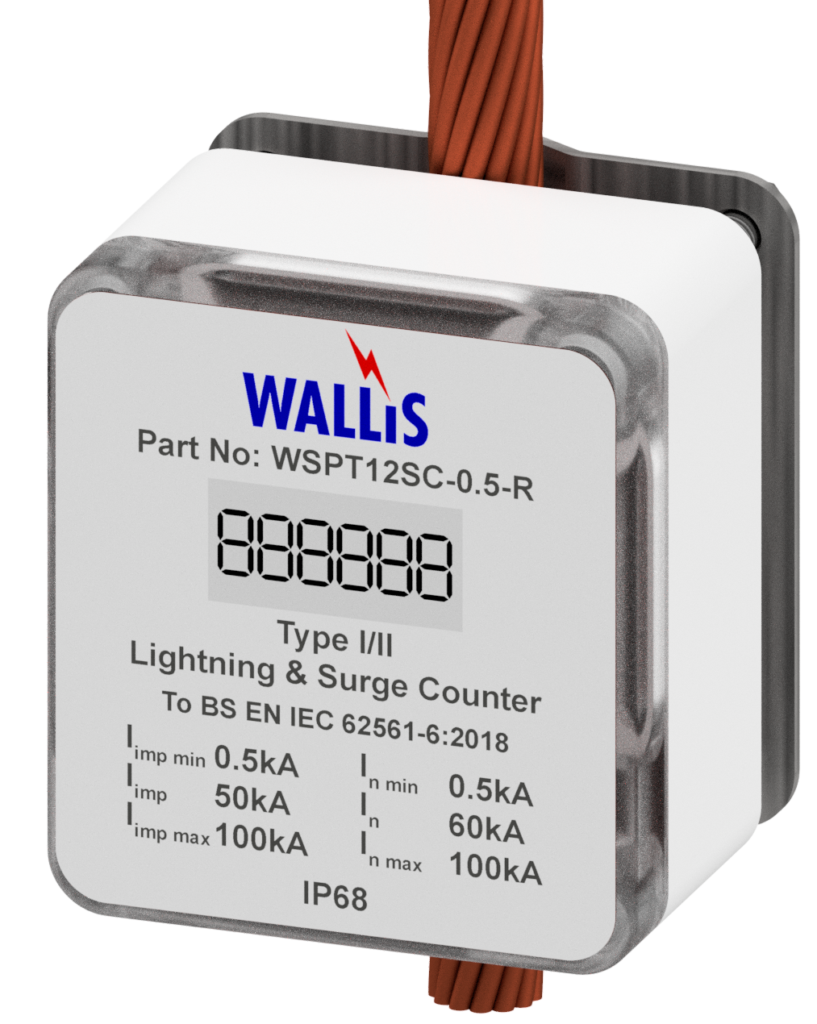

WSPT12SC-0.5-R (Lightning and Surge Counter, Round Conductor or Tape Mounting)

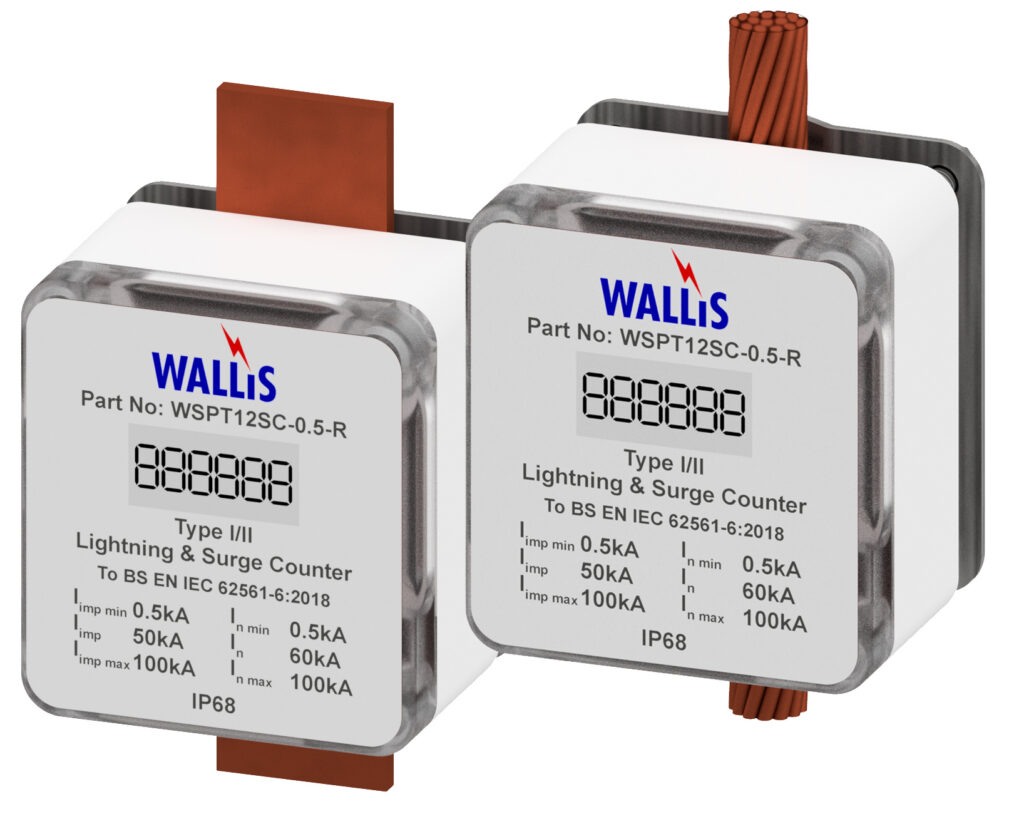

Surge Counter for Tape or round conductors
Surge Counter for Tape or round conductorssurge couner

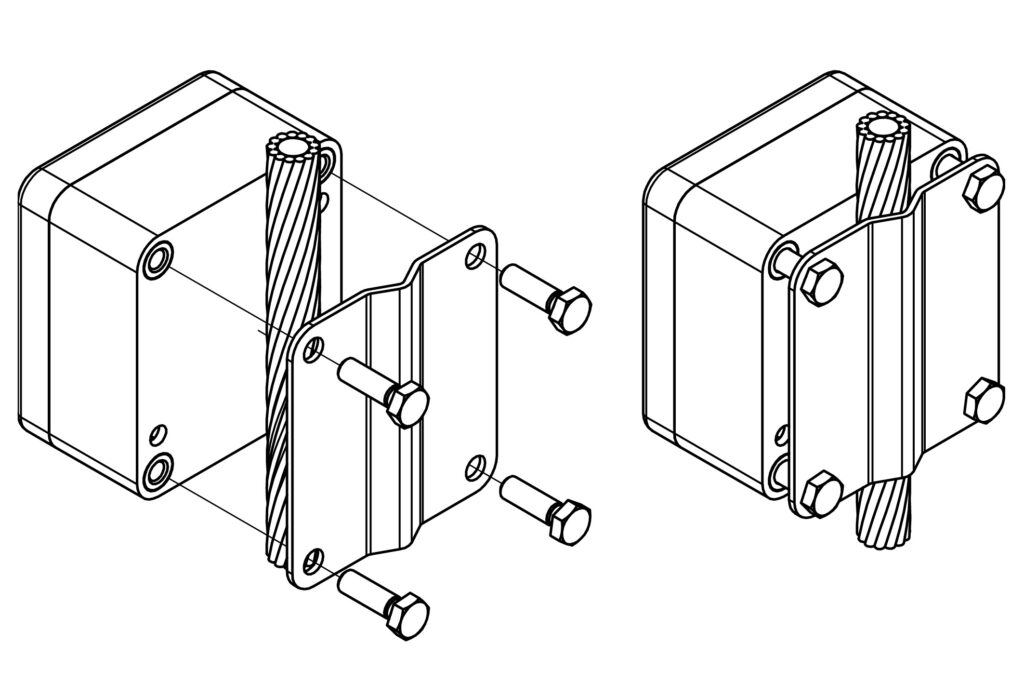

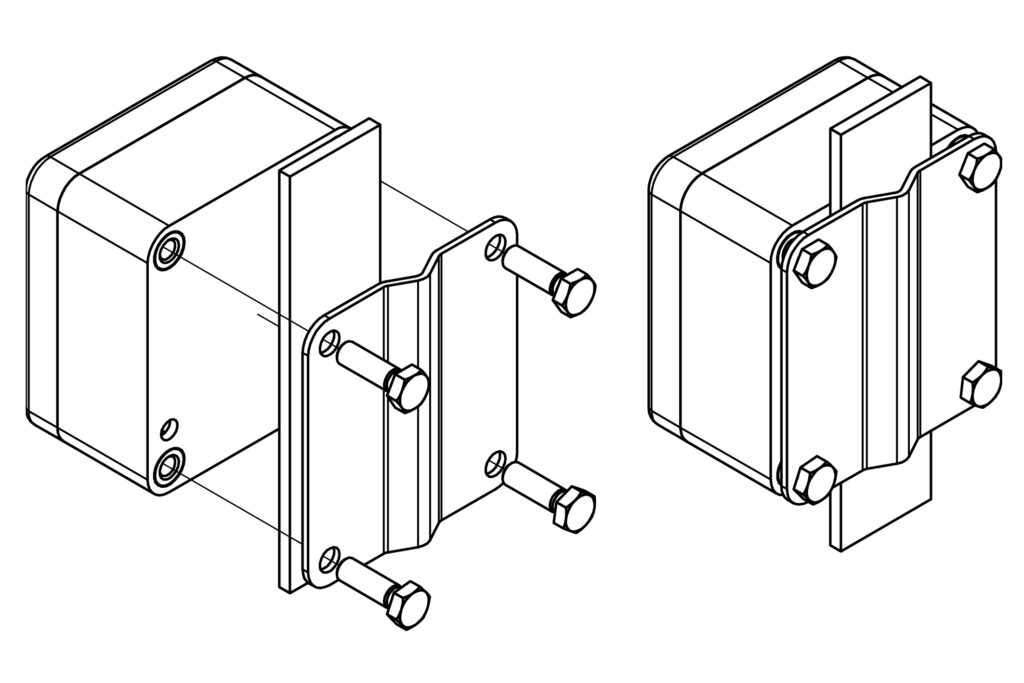

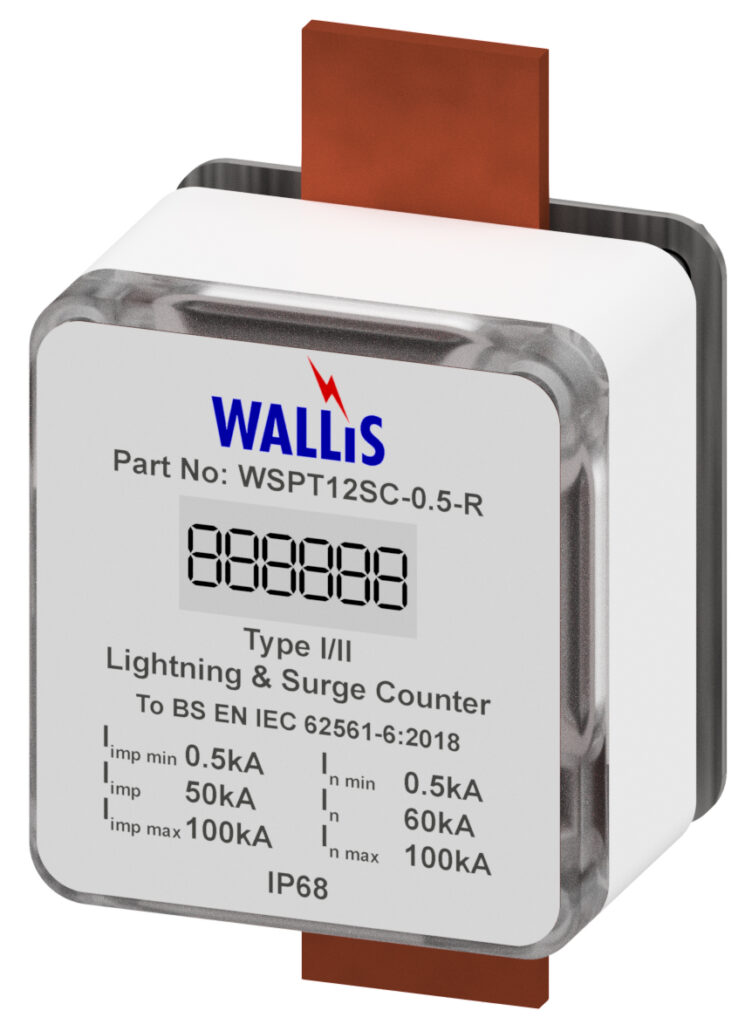

The A.N. Wallis WSPT12SC-0.5-R conforms to BS EN IEC 62561:2018 and is suitable for mounting on round conductors from 5mm to 12mm in diameter and on tape that is 25 to 40mm wide, 1.5 to 5mm thick. For 35mm DIN rail installation for use with cables up to 12mm in diameter, please see part code WSPT12SC-0.5-DIN.

The counter is configured to count surges of 500A or greater (Iimp min/In min), but other values can be provided.

The counter is powered by an integrated battery and has a life in excess of 10 years.

Type according to BS EN IEC 62561-6Minimum Discharge Current Counted (In min)Nominal Discharge Current Counted (In)Maximum Discharge Current Counted (In max)Minimum Impulse Discharge Counted (Iimp max)Nominal Impulse Discharge Counted (Iimp)Maximum Impulse Discharge Counted (Iimp max)Maximum CountMaximum Count FrequencyLocationPart Number
Type according to BS EN IEC 62561-6I and IIMinimum Discharge Current Counted (In min)0.5kANominal Discharge Current Counted (In)60kAMaximum Discharge Current Counted (In max)100kAMinimum Impulse Discharge Counted (Iimp max)0.5kANominal Impulse Discharge Counted (Iimp)50kAMaximum Impulse Discharge Counted (Iimp max)100kAMaximum Count999,999Maximum Count Frequency10kHzLocationOutdoorsPart NumberWSPT12SC-0.5-R

.
