WSPCCTV/T (Data, Type 2)

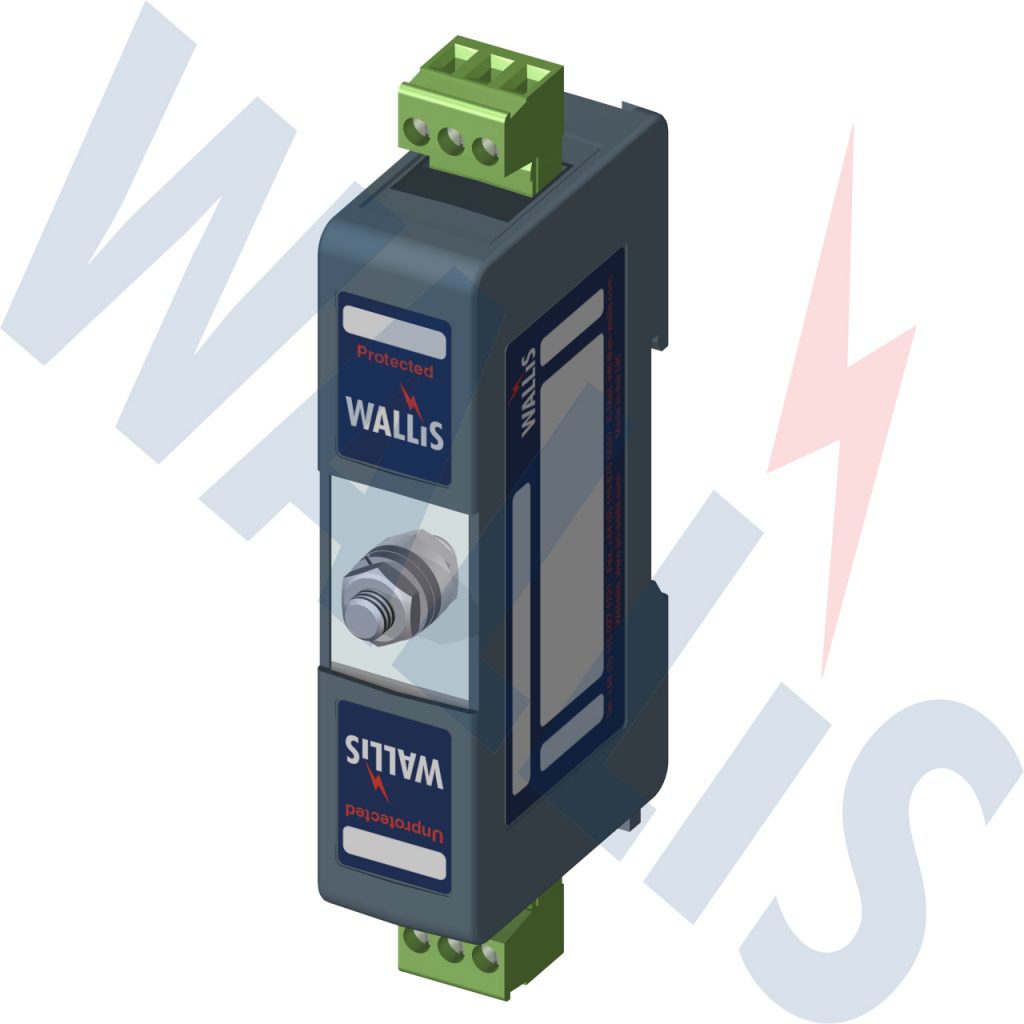

The WSPCCTV-T Wallis data line protection surge protector

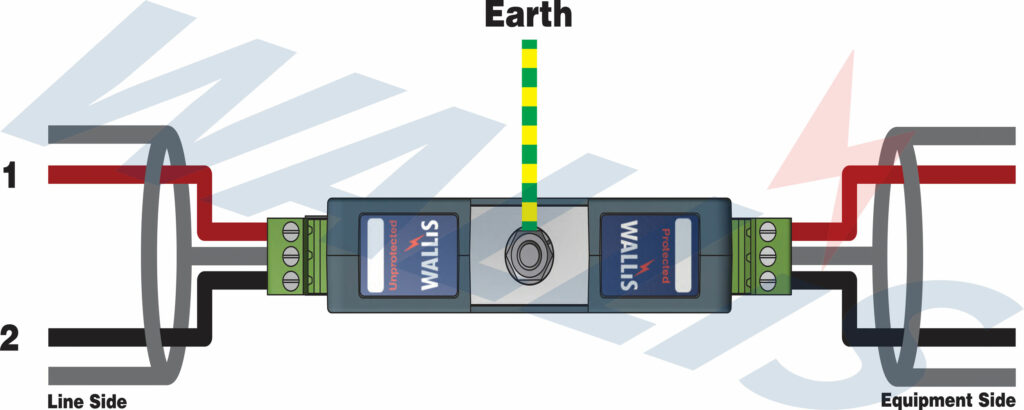

Wiring diagram of a WSPCCTV-T data line surge protector

Designed for business and industrial applications, these products provide protection for local area networks, CCTV/video equipment, computer communication interfaces and process control systems against the damaging effects of transient overvoltages caused by lightning, AC power systems and other electrically ‘noisy’ sources.

Features and Benefits:

  • Meets the requirements of BS EN 62305-4:2011 and BS EN 61643 21/22.
  • DIN rail mounting for modular installation.
  • Panel mounting screw holes for permanent installation.
  • Negligible effect on normal line operation.
  • Earthing kits and enclosures for multiple modules available.
  • Low let-through voltages.
Nominal VOperating V RangeMax. Current RatingNominal Surge Current 8/20μsMax. Surge Current 8/20μsLet-through VLocationPart Number
Nominal V2Operating V Range6.5 MaxMax. Current Rating0.33A (Signal)Nominal Surge Current 8/20μs5kAMax. Surge Current 8/20μs10kALet-through V17VLocationLPZ 1-2Part NumberWSPCCTV/T

Tested: BS EN 61643-21
