WSP-A1SPM/20/30R

The WSP-A1SPM-20-30R Wallis low voltage type 2 surge protector

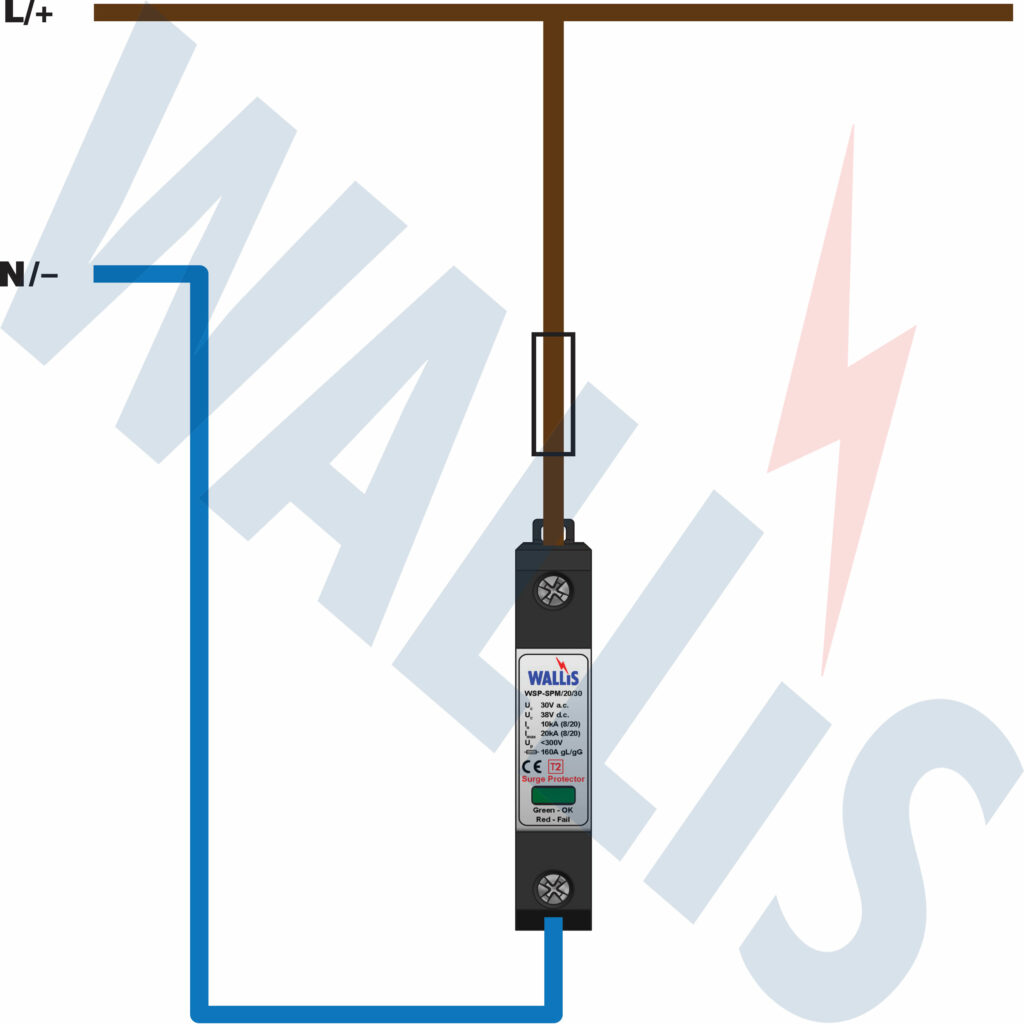

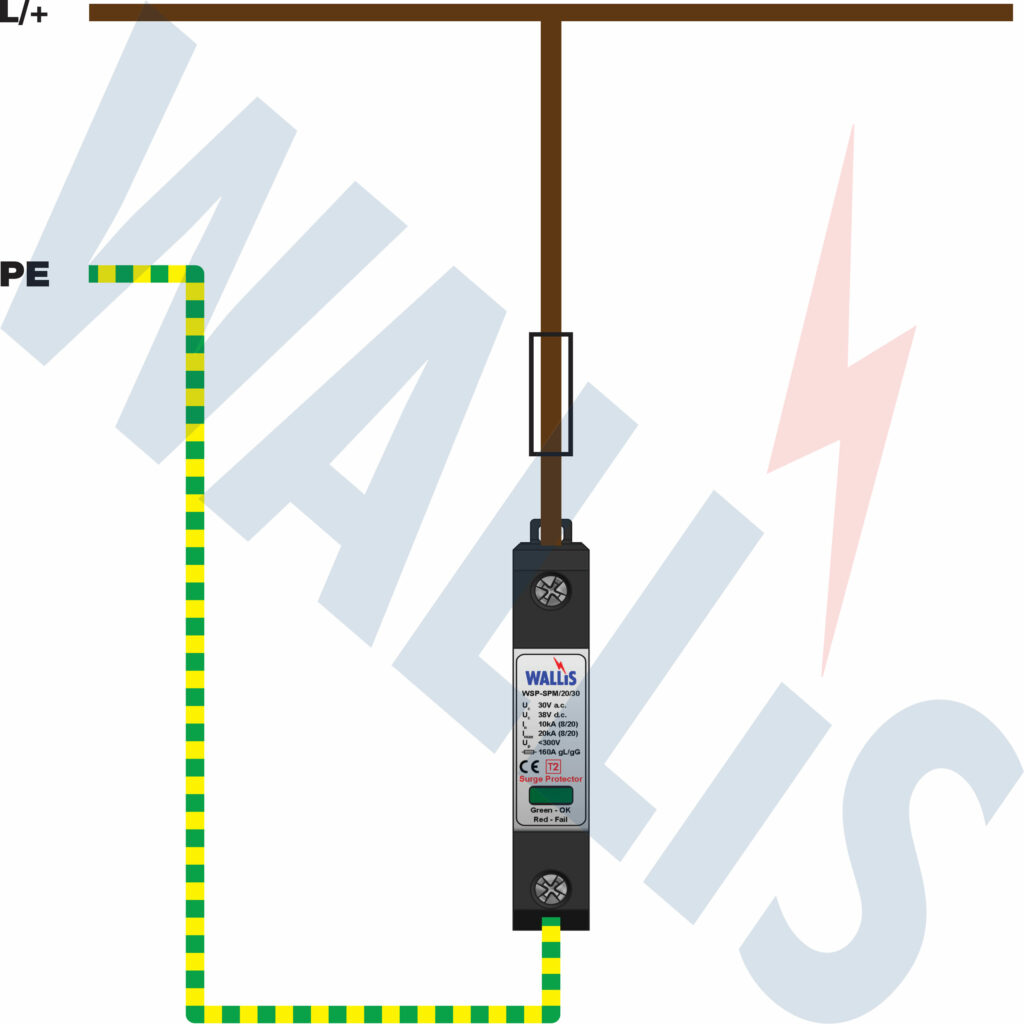

Wiring diagram of a WSP-A1SPM-20-30R low voltage surge protectorWiring diagram of a WSP-A1SPM-20-30R low voltage surge protector

The WSP-A1SPM/20/30R is a type 2 surge arrester according to BS EN 61643-11. The device consists of a base part and pluggable module.

These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 1-2 (according to IEC 1312-1 and BS EN 62305) for equipotential bonding and elimination of transient overvoltages that originate during atmospheric discharges or switching processes.

The main use of the WSP- A1SPM/20/30R arrester is in all kinds of industry, residential and administration buildings. They are to be placed into the secondary switchboards or into the control box.

Nominal Operating Voltage (Un)Max. Continuous Operating Voltage (AC) (Uc)Max. Continuous Operating Voltage (DC) (Uc)Max. Discharge Current (8/20) (Imax)Nominal Discharge Current (8/20) (In)Voltage Protection Level at (In)Part Number
Nominal Operating Voltage (Un)24V DCMax. Continuous Operating Voltage (AC) (Uc)30VMax. Continuous Operating Voltage (DC) (Uc)38VMax. Discharge Current (8/20) (Imax)20kANominal Discharge Current (8/20) (In)10kAVoltage Protection Level at (In)<300VPart NumberWSP-A1SPM/20/30R

.
