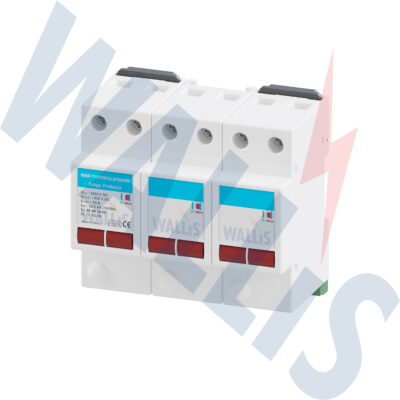

The WSP-T1PV2-12.5-1000R Wallis photovoltaic surge protector

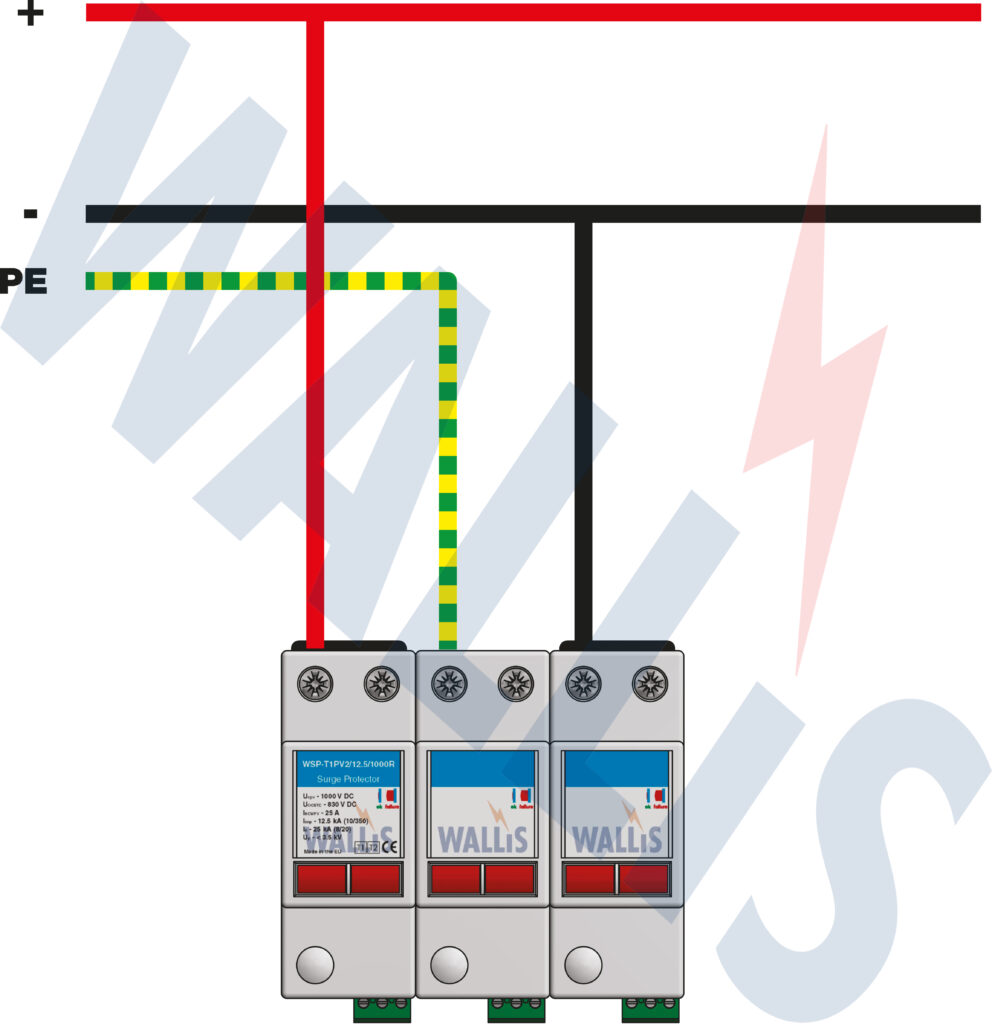

Wiring diagram of a WSP-T1PV2-12 photovoltaic surge protector

The WSP-T1PV2/12.5/1000R is a lightning arrester type 1+2 according to EN 61643-11. This photovoltaic surge protector is designed to be connected to the positive and negative busbars of photovoltaic systems to protect panels and inverters against surge effects.

These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 0-1 (according to IEC 1312-1 and EN 62305). Particular varistor sectors connected between terminals L+, L- and PE are equipped with fitted internal disconnectors which are activated when varistors fail (overheat).

Failure indication is both mechanical (by red pop-out flags) and via remote monitoring (by potential free switching contacts).

Features and Benefits:

  • Simple to install.
  • 2 methods of failure indication.
  • Response time (tA) <25ns.

Our other photovoltaic surge protectors can be viewed here.

Max. Continuous Operating Voltage DC (Ucpv)Lightning Impulse Current (10/350) (Iimp)Nominal Impulse Discharge Current (8/20) (In)Voltage Protection Level (Up)Short Circuit Withstand (Iscwpv)Part Number
Max. Continuous Operating Voltage DC (Ucpv)1000VLightning Impulse Current (10/350) (Iimp)12.5kANominal Impulse Discharge Current (8/20) (In)25kAVoltage Protection Level (Up)<3.4kVShort Circuit Withstand (Iscwpv)25APart NumberWSP-T1PV2/12.5/1000R

.
