Split Connector Clamps – For use with Copperbond Earth Rods (on rod thread)

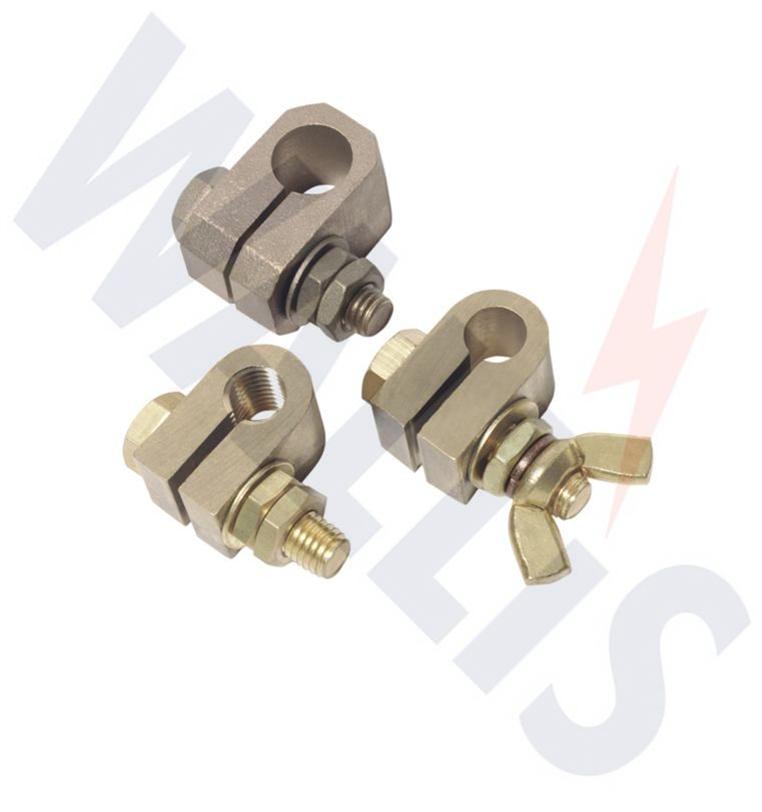

An image of 3 Wallis split connector clamps

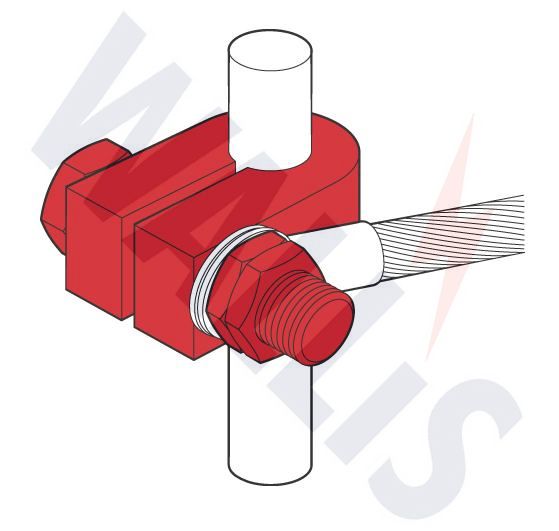

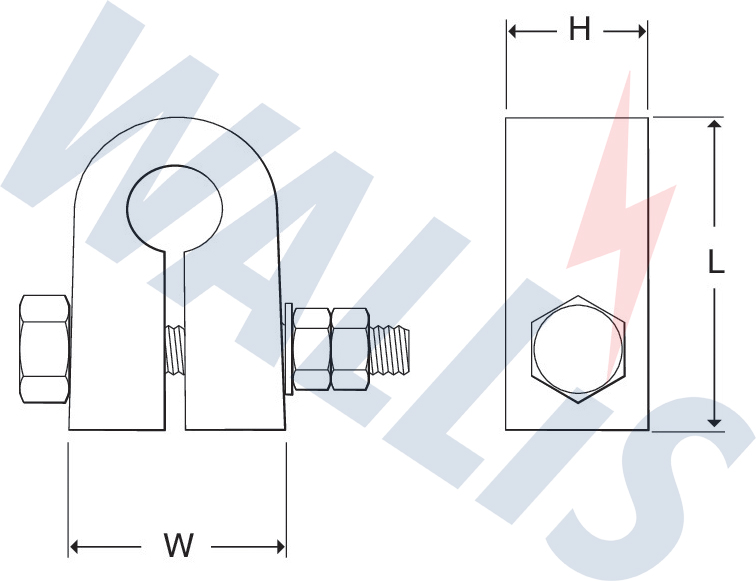

In-situ image of a split connector clamp connecting a cable lug to an earth rodDimensional drawing of a split connector clamp

Split connector clamps are used to connect cable lugs onto earth rods. The clamps are designed to suit our full range of earth rods. All clamps are assembled with an M12 x 50mm set screw and fittings.

Nominal Rod SizeThread Size (UNC-2A)L (mm)W (mm)H (mm)Unit Weight (kg)Part Number
Nominal Rod Size5/8"Thread Size (UNC-2A)5/8"L (mm)42W (mm)24H (mm)26Unit Weight (kg)0.21Part NumberERS 016
Nominal Rod Size3/4"Thread Size (UNC-2A)3/4"L (mm)51W (mm)31H (mm)30Unit Weight (kg)0.34Part NumberERS 020

Material: High Copper Alloy

Tested: BS EN 62561-1 Class H
