Copperbond Earth Rods

An image of 3 of the Wallis copperbond earth rods

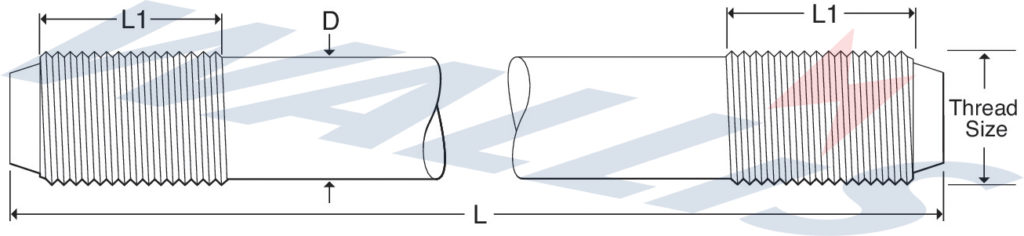

In-situ image of a copperbond earth rod complete with driving head and couplerA dimensional drawing of the Wallis Copperbond Earth Rod

A.N. Wallis manufactures and supplies the complete range of Copperbond Earth Rods, offering installers the most economical method of achieving a low earth resistance.

Each copperbond earth rod has a high tensile strength and low carbon steel core. 99.95% pure copper is applied electrolytically and forms a metallurgical bond between the steel core and the copper. This combination makes each earth rod ideal for deep driving whilst also providing lasting resistance to corrosion.

The threads on each copperbond earth rod are formed by a cold rolling process which ensures strength and maintains the molecularly bonded copper covering along the full length of the threads. Cold-rolled threads are stronger than cut threads.

The standard copper thickness is 0.25mm. Greater copper thicknesses are also available. Please contact our sales office for further information.

We also offer a wide range of different-sized Copperbond Earth Rods along with compatible threaded couplers and threaded driving heads, we also offer a quick quoting service. If you have any questions regarding any of our products, or if you require a price list, please feel free to contact us.

Finally, to browse our full range of Earth Rods including Solid Copper, Stainless Steel and Tinned Solid Copper, click here.

Nominal SizeL (mm)Thread Size (UNC-2A)Shank D (mm)L1 mmUnit Weight (kg)Part Number
Nominal Size1/2”L (mm)1200Thread Size (UNC-2A)9/16”Shank D (mm)12.7L1 mm30Unit Weight (kg)1.18Part NumberERB 412
Nominal Size1/2”L (mm)1500Thread Size (UNC-2A)9/16”Shank D (mm)12.7L1 mm30Unit Weight (kg)1.18Part NumberERB 415
Nominal Size1/2”L (mm)1800Thread Size (UNC-2A)9/16”Shank D (mm)12.7L1 mm30Unit Weight (kg)1.76Part NumberERB 418
Nominal Size1/2”L (mm)2400Thread Size (UNC-2A)9/16”Shank D (mm)12.7L1 mm30Unit Weight (kg)2.36Part NumberERB 424
Nominal Size5/8"L (mm)1000Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm30Unit Weight (kg)1.28Part NumberERB 110
Nominal Size5/8"L (mm)1200Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm30Unit Weight (kg)1.53Part NumberERB 112
Nominal Size5/8"L (mm)1200Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm40Unit Weight (kg)1.53Part NumberERB 112S
Nominal Size5/8"L (mm)1500Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm30Unit Weight (kg)1.95Part NumberERB 115
Nominal Size5/8"L (mm)1800Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm30Unit Weight (kg)2.23Part NumberERB 118
Nominal Size5/8"L (mm)2400Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm30Unit Weight (kg)3.00Part NumberERB 124
Nominal Size5/8"L (mm)2400Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm40Unit Weight (kg)3.00Part NumberERB 124S
Nominal Size5/8"L (mm)3000Thread Size (UNC-2A)5/8"Shank D (mm)14.2L1 mm30Unit Weight (kg)3.70Part NumberERB 130
Nominal Size3/4"L (mm)1000Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)1.65Part NumberERB 200
Nominal Size3/4"L (mm)1200Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)2.20Part NumberERB 212
Nominal Size3/4"L (mm)1500Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)2.76Part NumberERB 215
Nominal Size3/4"L (mm)1800Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)3.26Part NumberERB 218
Nominal Size3/4"L (mm)2400Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)4.45Part NumberERB 224
Nominal Size3/4"L (mm)2400Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)4.45Part NumberERB224/300*
Nominal Size3/4"L (mm)3000Thread Size (UNC-2A)3/4"Shank D (mm)17.2L1 mm35Unit Weight (kg)5.48Part NumberERB 230
Nominal Size1"L (mm)2400Thread Size (UNC-2A)1"Shank D (mm)23.0L1 mm50Unit Weight (kg)2.43Part NumberERB 324
Nominal Size1"L (mm)3000Thread Size (UNC-2A)1"Shank D (mm)23.0L1 mm50Unit Weight (kg)3.04Part NumberERB 330

Material: Pure copper molecularly bonded onto a steel core. *Pure copper molecularly bonded onto a steel core (300 microns).

Tested: BS EN 62561-2
