‘U’ Bolt Clamp

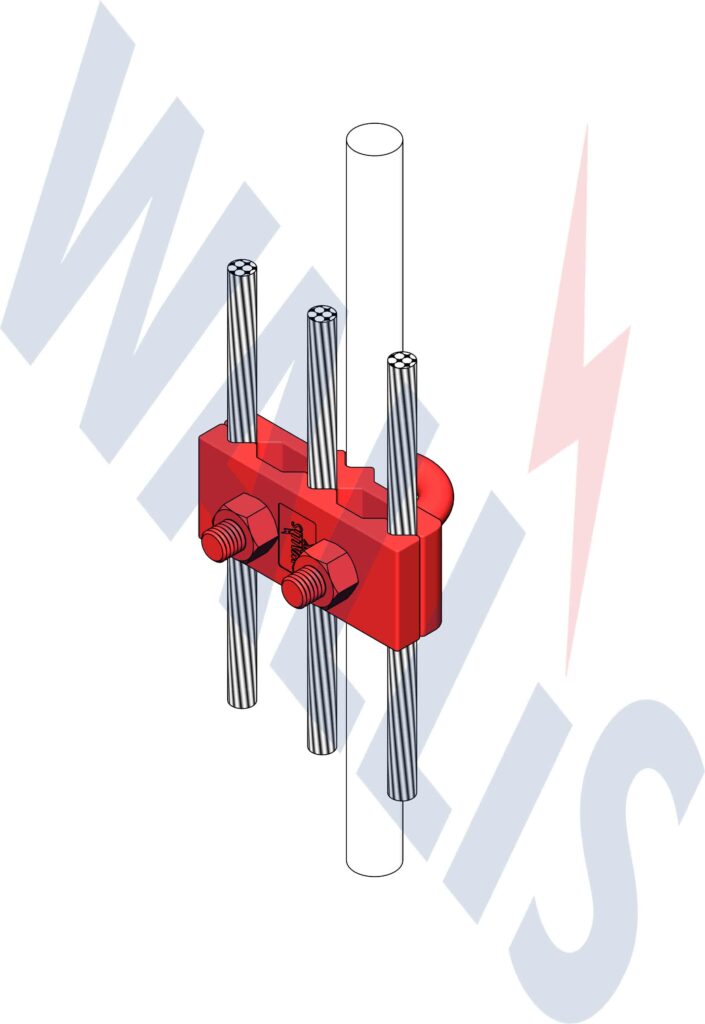

This unique specially designed ‘U’ bolt clamp is used to connect 1, 2 or 3 stranded cables to the earth rod. The ‘V’ seat of the clamp pushes the earth rod to self-centre itself, which eliminates any movement in the fitting.

The clamp is designed for earth rods between 16-20mm diameter and will accept stranded conductors ranging from 70sqmm to 150sqmm.

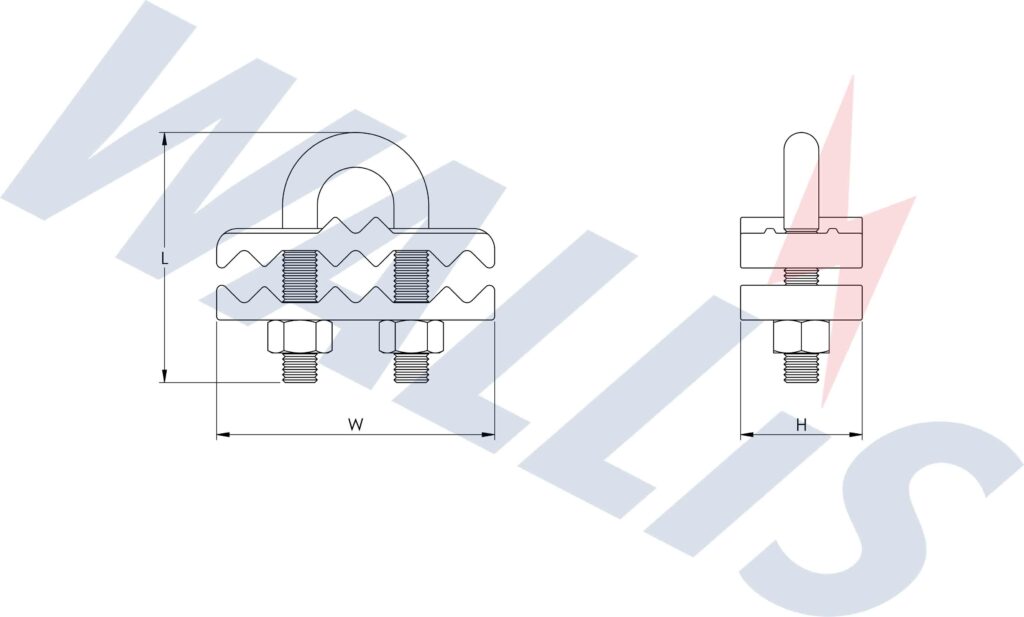

Maximum Rod Ø mmConductor Range (sqmm)L (mm)W (mm)H (mm)Unit Weight (kg)Pack QuantityPart Number
Maximum Rod Ø mm16 - 20Conductor Range (sqmm)70 - 150 x 3L (mm)72W (mm)80H (mm)35Unit Weight (kg)0.40Pack Quantity10Part NumberERU 370

Material: High Copper Alloy
