‘U’ Bolt Clamps – Single Plate Type for Horizontal Flat Tapes

Dimensional drawing of a u bolt clamp

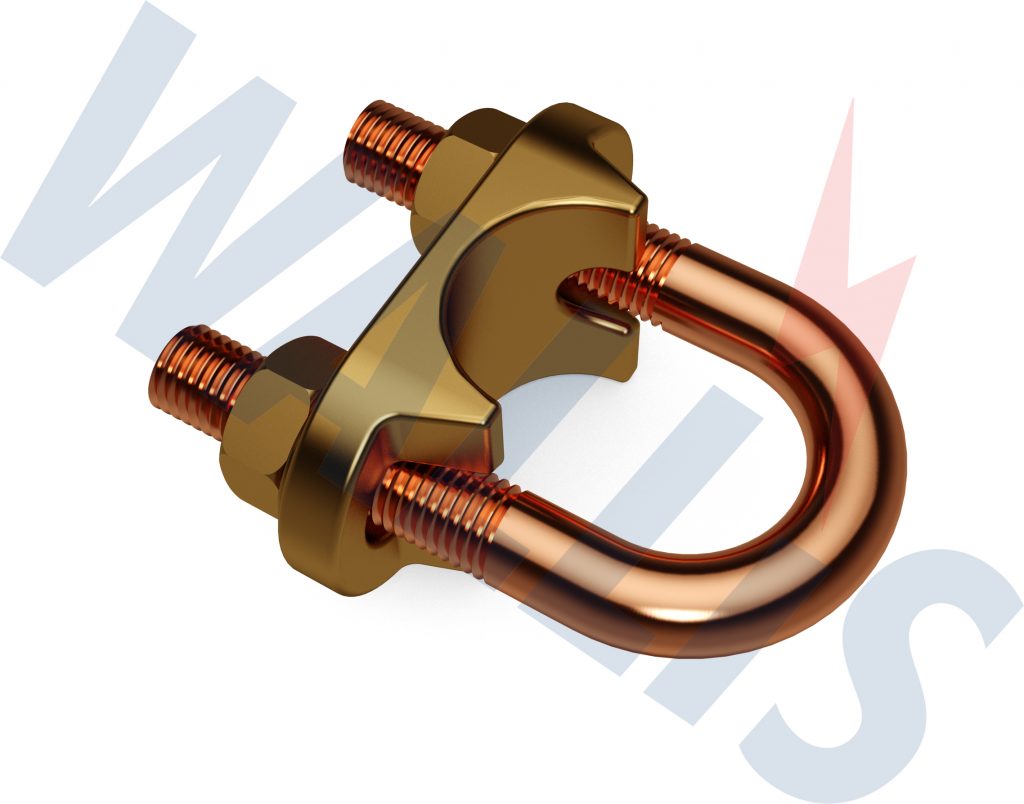

This versatile range of Wallis ‘U’ bolt clamps can be used to connect flat tapes and stranded cables to earth rods, reinforcing bars (rebar), handrails etc.

These ‘U’ Bolts are used to connect flat tapes in a horizontal position on the earth rod and are manufactured from high copper alloy with an M10 threaded copper ‘U’ bolt.

Maximum Rod Ø mmHole Centres (mm)L (mm)W (mm)H (mm)Unit Weight (kg)Pack QuantityPart Number
Maximum Rod Ø mm16Hole Centres (mm)30L (mm)58W (mm)62H (mm)33Unit Weight (kg)0.17Pack Quantity20Part NumberERU 016
Maximum Rod Ø mm25Hole Centres (mm)37L (mm)72W (mm)62H (mm)33Unit Weight (kg)0.19Pack Quantity20Part NumberERU 025
Maximum Rod Ø mm31Hole Centres (mm)41L (mm)82W (mm)68H (mm)33Unit Weight (kg)0.25Pack Quantity10Part NumberERU 031
Maximum Rod Ø mm38Hole Centres (mm)46L (mm)80W (mm)75H (mm)33Unit Weight (kg)0.29Pack Quantity10Part NumberERU 038
Maximum Rod Ø mm50Hole Centres (mm)63L (mm)95W (mm)90H (mm)33Unit Weight (kg)0.39Pack Quantity5Part NumberERU 050

Material: High Copper Alloy plate with M10 threaded copper ‘U’ bolt.

Tested: BS EN 62561-1 Class H

Tightening Torque: 20 Nm
